Dagostino Momentum HD PreAmplifier Silver



Drive and Detail for All Music



The Momentum HD Preamplifier builds on the award-winning platform of the Momentum Preamplifier. The HD status represents the high dynamic and high definition improvements that have been achieved in this substantial upgrade. The initial concept for the Momentum HD input circuitry enhancements started as an engineering exercise that resulted in performance improvements that drove a full development effort. The result is the Momentum HD Preamplifier. Beyond the input stage, the new Momentum HD Preamplifier incorporates advancements in the power supply, audio circuitry, and control sections. Voices are rendered with a lushness and richness that was simply unattainable previously. Dynamic content effortlessly bursts forth with a startling energy reminiscent of live music. .



Dagostino Momentum HD PreAmplifier Silver



Balanced Circuits for Maximum Bandwidth.

Like the Momentum amplifiers, the Momentum HD Preamplifier uses a complementary balanced circuit topology for maximum bandwidth and low noise. Its audio circuitry is fully discrete, with no op amps or integrated circuits. A Zero-feedback design assures the most musical sound quality. Volume adjustment is made through a resistor network governed by an optical controller—the cleanest, most transparent possible method of controlling volume.

Detail and Richness Throughout the Musical Range

A completely new discrete differential FET input stage features two current sources per leg and an input impedance greater than 1MOhm. This ultra-high input impedance isolates the input stage and thus the entire audio signal path from external variables.

This new input stage started as an engineering exercise that delivered exceptional results. Fine-grain detail and delicate musical shadings are rendered with a lushness and richness that were simply unattainable previously.



Striking Dynamics

Housed in a separate chassis for maximum isolation, the Momentum HD main power transformer is 33% larger as compared to the original Momentum Preamplifier. A unique winding technology, first employed in the Momentum M400 amplifier, delivers greater power output from the same footprint. Separate supplies power audio and control circuitry, so the control circuits are completely isolated from the audio circuits. Internal circuitry filters RF noise from the AC powerline and compensates for asymmetric power waveforms and DC on the main power line.

Taking advantage of the increased power supply capability, the output stages are now operating at a 36% percent higher voltage. The increased output voltage has opened up the dynamics on both the micro and macro level with contrasts striking in their speed.



Dagostino Momentum HD PreAmplifier Silver



Advanced Remote Control

Bluetooth technology is featured in the included remote control. The Bluetooth backbone extends the range of the remote by a factor of five and eliminates line of sight limitations that are inherent in IR remote controls.

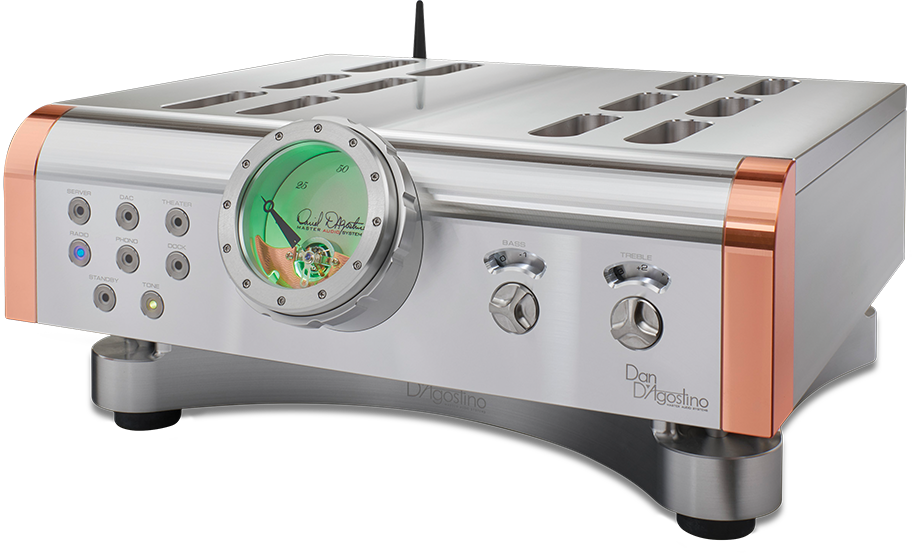

The styling of the Momentum HD Preamplifier perfectly complements the Momentum M400 MxV and S250 MxV amplifiers, with copper accents matching the amplifiers’ unique copper heat sinks. The meter on the front face of the preamplifier indicates volume setting, polarity, and mute status. Front selector buttons illuminate indicating which input is active.

Existing Momentum Preamplifier owners may upgrade to the new Momentum HD Preamplifier electronics enhancements by contacting their local dealer.



Specs

Frequency Response
0.1 Hz to 1 MHz, -1 dB 20Hz to 20 kHz, ±0 dB
Signal-to-Noise Ratio
-105 dB, unweighted
Gain
+13 dB or +19 dB, switchable
Finish
Silver Black Custom Finishes Available Upon Request
Input Impedance
1 MΩ
Output Impedance
10Ω
Power Consumption
<1 watt
Distortion (Full output)
<0.006%, 20 Hz to 20 kHz

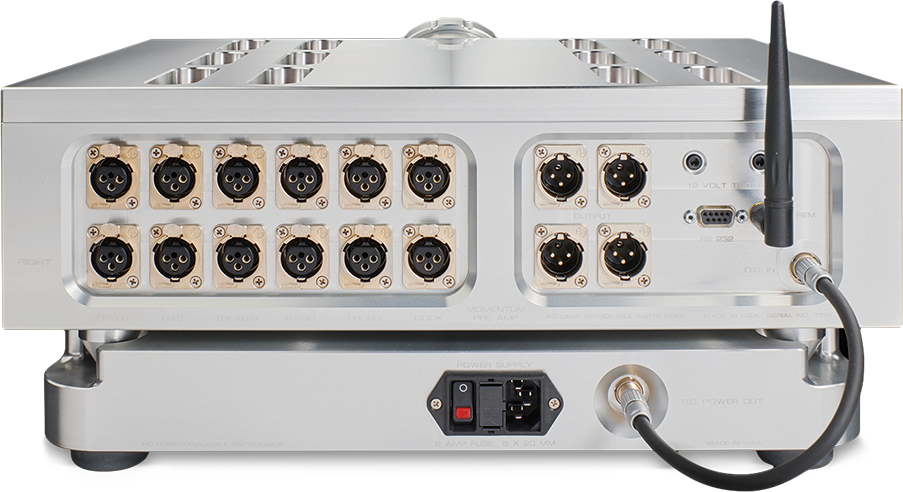

Inputs
6 balanced XLR stereo
Outputs
2 balanced XLR stereo
Dimensions (Preamp)
4.3 x 18 x 12 inches / 10.8 x 45 x 30 cm
Dimensions (Power Supply/Base)
3 x 11 x 8 inches / 7.5 x 27.5 x 20 cm
RS232
Product Class
