Momentum C2 Preamplifier
Unrivaled complementary four-circuit topology and an optional Digital Streaming Module
A Bold New Concept
The Momentum C2—short for Concept 2—underscores the magnitude of advancement beyond its predecessor, the acclaimed Momentum HD Preamplifier. It features an entirely new concept: complementary four-circuit topology inspired by the flagship Relentless Preamplifier, along with other innovations—from input stage to power supply, plus an available Digital Streaming Module—that put the Momentum C2 Preamplifier in a class by itself.
Complementary Four-Circuit Topology
At the heart of the Momentum C2 Preamplifier lies Dan D’Agostino’s revolutionary complementary four-circuit topology. This unique input stage circuitry sets a new standard for performance and precision, delivering unparalleled clarity and fidelity to the audio experience. Utmost attention to design detail ensures optimal mechanical and electrical isolation, guaranteeing pristine signal integrity throughout the critical preamplification stage.
Unrivaled Audio Circuitry

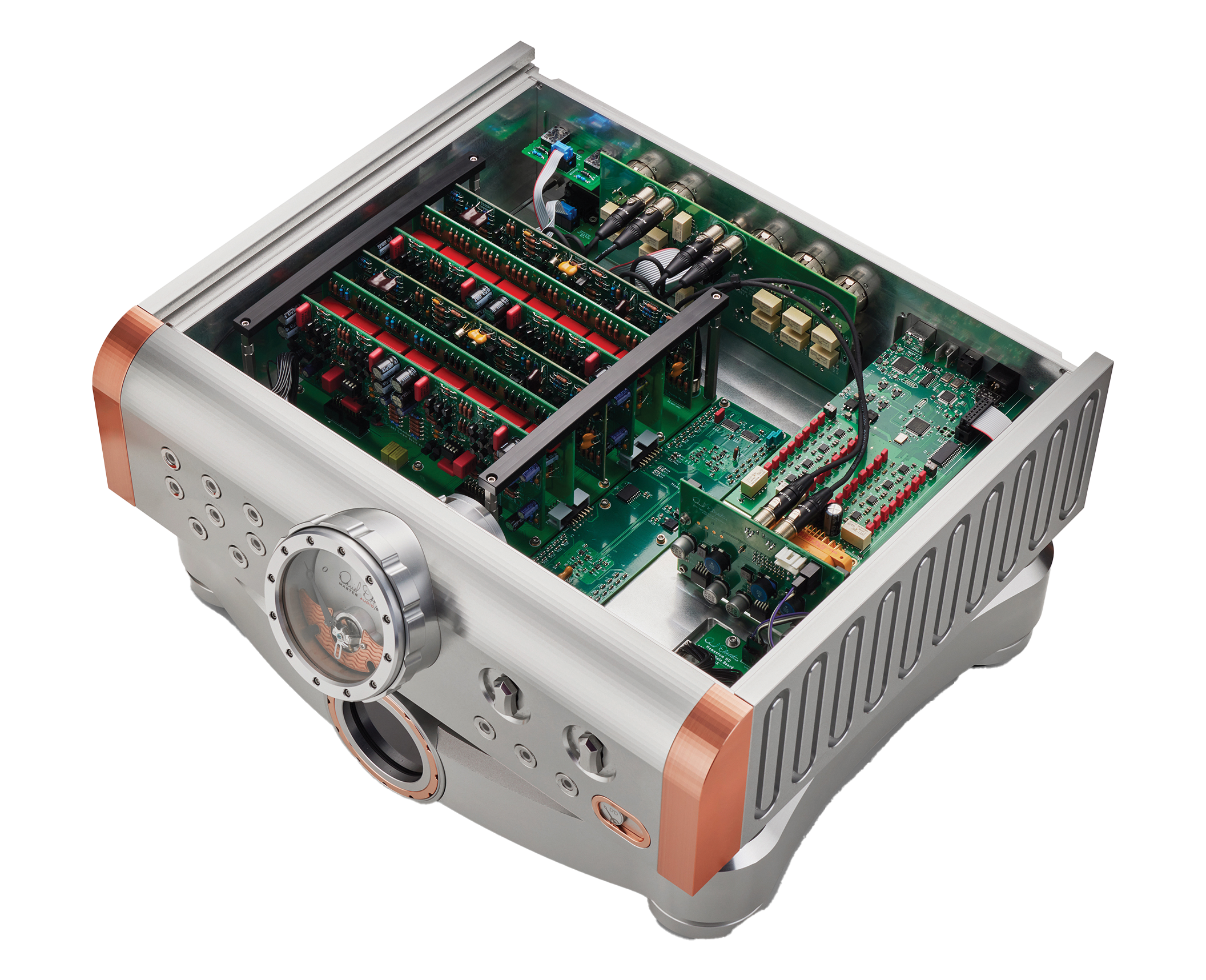

Building on the legacy of the Momentum HD Preamplifier, the Momentum C2 topology utilizes an array of four JFET transistors in a complementary, differential, push-pull arrangement, dramatically increasing input impedance and reducing noise. Its unique, discrete dual-complementary differential JFET input stage achieves exceptional performance and stability in every system configuration.

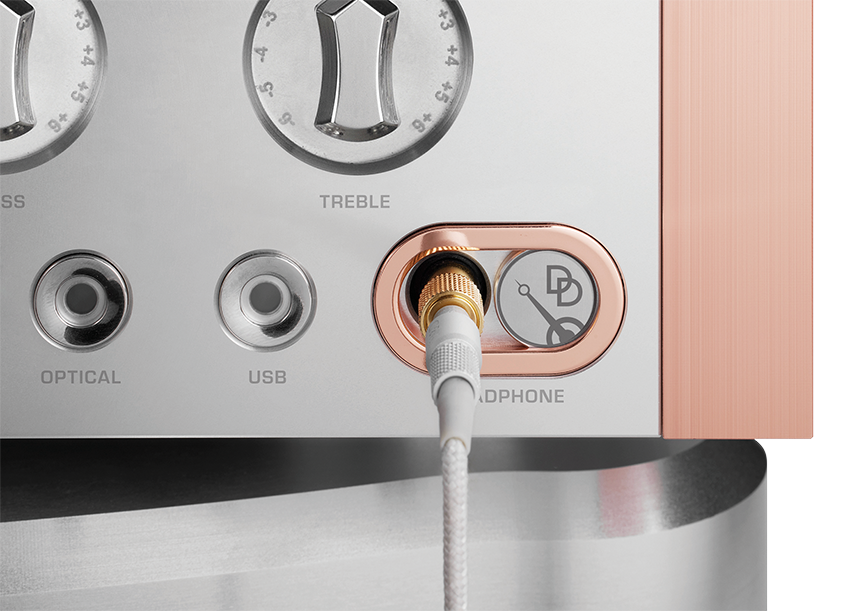

For less-than-audiophile-grade recordings, transformative tone-control circuitry remains entirely transparent in its operation, ensuring zero impact on the signal path when inactive. Concealed behind a discreet door on the front panel, a headphone jack featuring independent amplifier circuitry opens the world of private listening at the most refined level.
Unmatched Power Supply

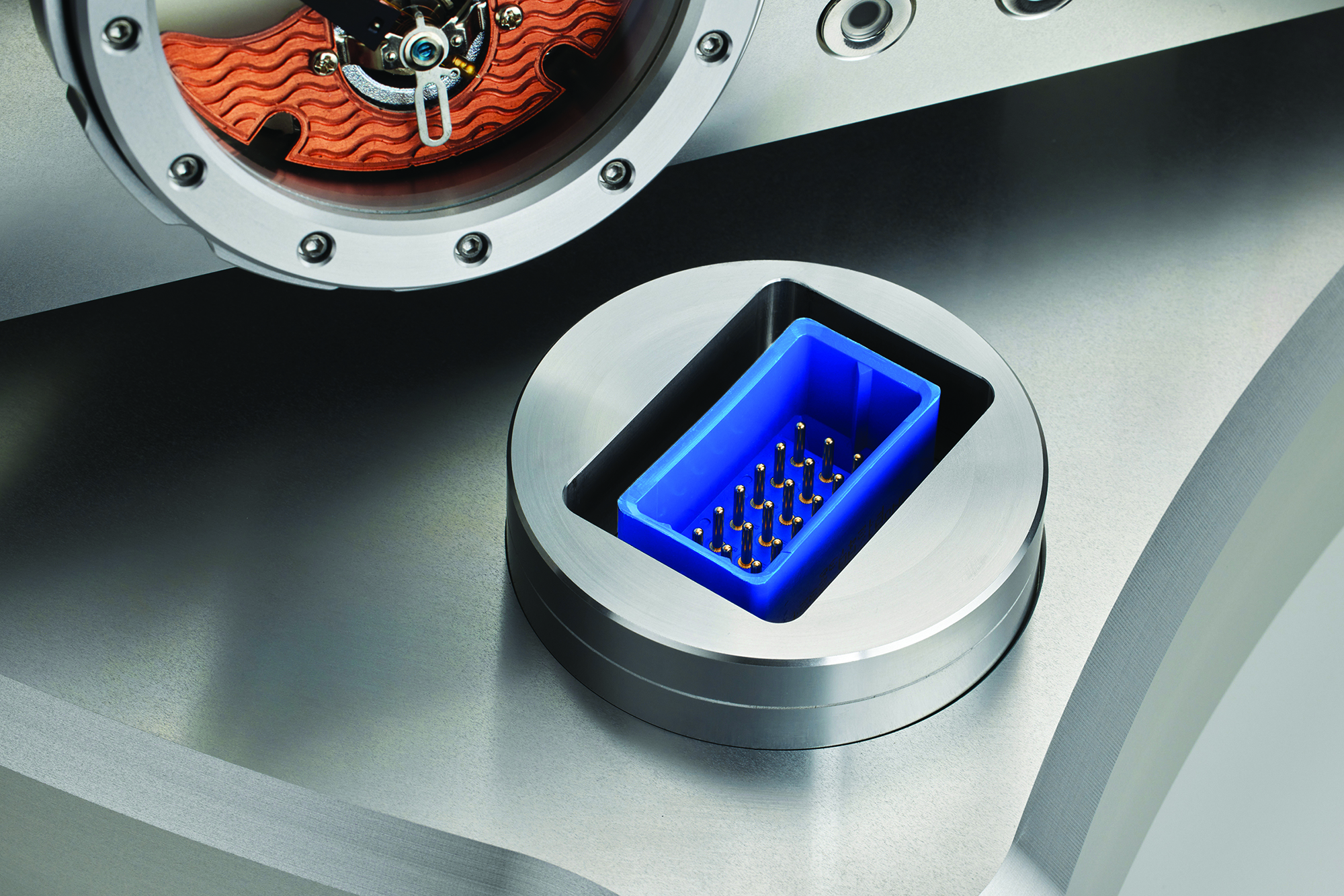

The enhanced dynamics and power delivery of the Momentum C2 Preamplifier are a product of an advanced power supply, housed in a separate chassis for maximum isolation, and powering the audio chassis through a 20-amp interlocking connector. The power supply features individual custom toroidal transformers dedicated to analog and digital circuitry, respectively, with internal circuitry addressing RF noise and powerline irregularities.
![]() |
![]() |
Digital Streaming Module (DSM)
The Momentum C2 Preamplifier offers an optional DSM that adds connectivity for legacy sources, USB functionality, and premier streaming capability. Field upgradeable, the DSM adds SPDIF coaxial, optical, USB-B, RJ45, and Wi-Fi network inputs. For latency-free playback of high-resolution network content,10/100/1000 Gigabit Ethernet is supported.
Tailored iOS apps facilitate effortless control of music collections, streaming content, and unit functions. Native integration with subscription streaming services like Tidal, Qobuz, and Spotify is supported within the app, with additional compatibility for Tidal Connect. Furthermore, with appropriately encoded files, standard MQA decoding is enabled. For users who prefer alternative music management, Roon Ready certification will also be available.
Capable of handling today’s highest resolution sources, the DSM natively decodes PCM signals up to 32 bit/384kHz and DSD signals up to DSD256 (11.2 MHz).
Often overlooked or downplayed, the analog section of a DAC significantly impacts the final sonic performance of digital music. Internal balanced connections carry the final analog signal directly to the input circuitry. From here, the analog music signal takes advantage of the entire power and analog circuitry within the Momentum C2 Preamplifier.
Advanced Control

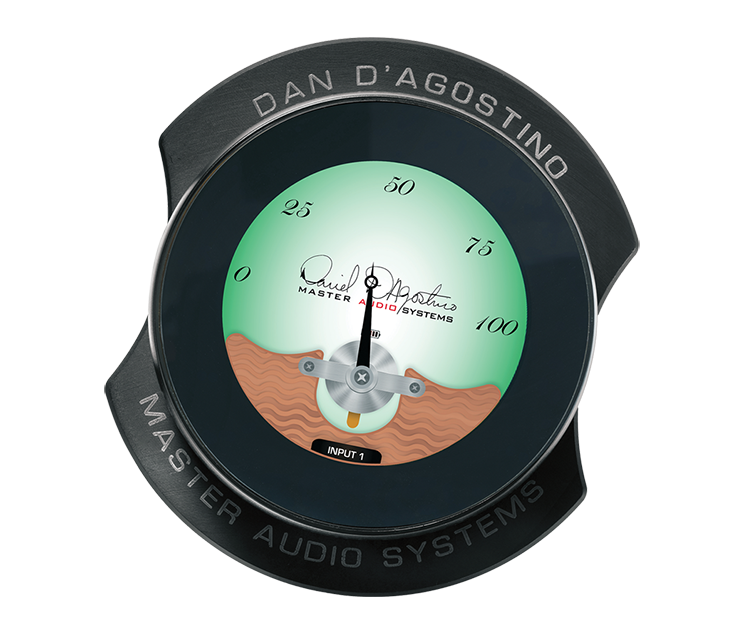

Created with precision and elegance in mind, the Momentum C2 Preamplifier expresses a sleek and sophisticated design. The included bi-directional remote control, housed in precision-machined aluminum and Delrin®, offers intuitive control over unit functions and settings. With its ergonomic design and LCD screen, the remote provides a seamless user experience, mirroring information from the preamplifier’s front panel display.
Coupling innovative circuitry with unparalleled design, the Momentum C2 Preamplifier becomes the centerpiece of the most ambitious music systems.
Specifications
Frequency Response |
0.1 Hz to 1 MHz, –1 dB / 20 Hz to 20 kHz, ±0 dB |
Signal-to-Noise Ratio |
>98 dB, A-weighted / >105 dB, unweighted |
Gain |
+10 dB |
Input Impedance |
1 MΩ |
Output Impedance |
.05 Ω |
Distortion |
<0.002%, 20 Hz to 20 kHz |
Analog Inputs |
3 pair balanced XLR stereo; 1 pair unbalanced RCA stereo |
Digital Inputs (w/optional DSM) |
1 each SPDIF coaxial; Optical; USB-B; RJ45 Ethernet; Wi-Fi |
Outputs |
2 pair balanced XLR stereo; ¼-inch headphone |
Control Protocol |
RS-232 |
Dimensions (WHD) |
17.0 x 8.9 x 15.2 in / 43.2 x 22.6 x 38.6 cm |
Weight |
73 lb / 33.1 kg |
Finish |
Silver or Black |

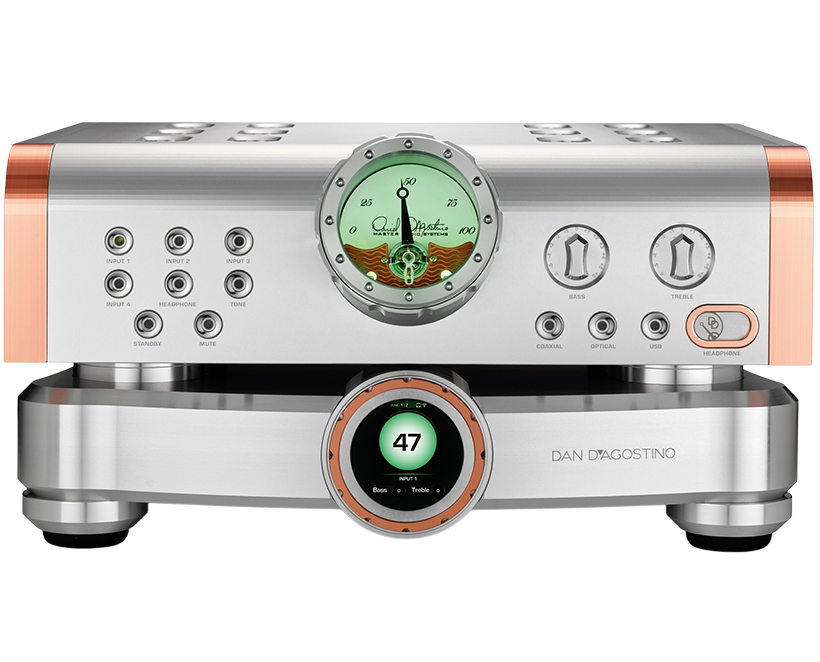

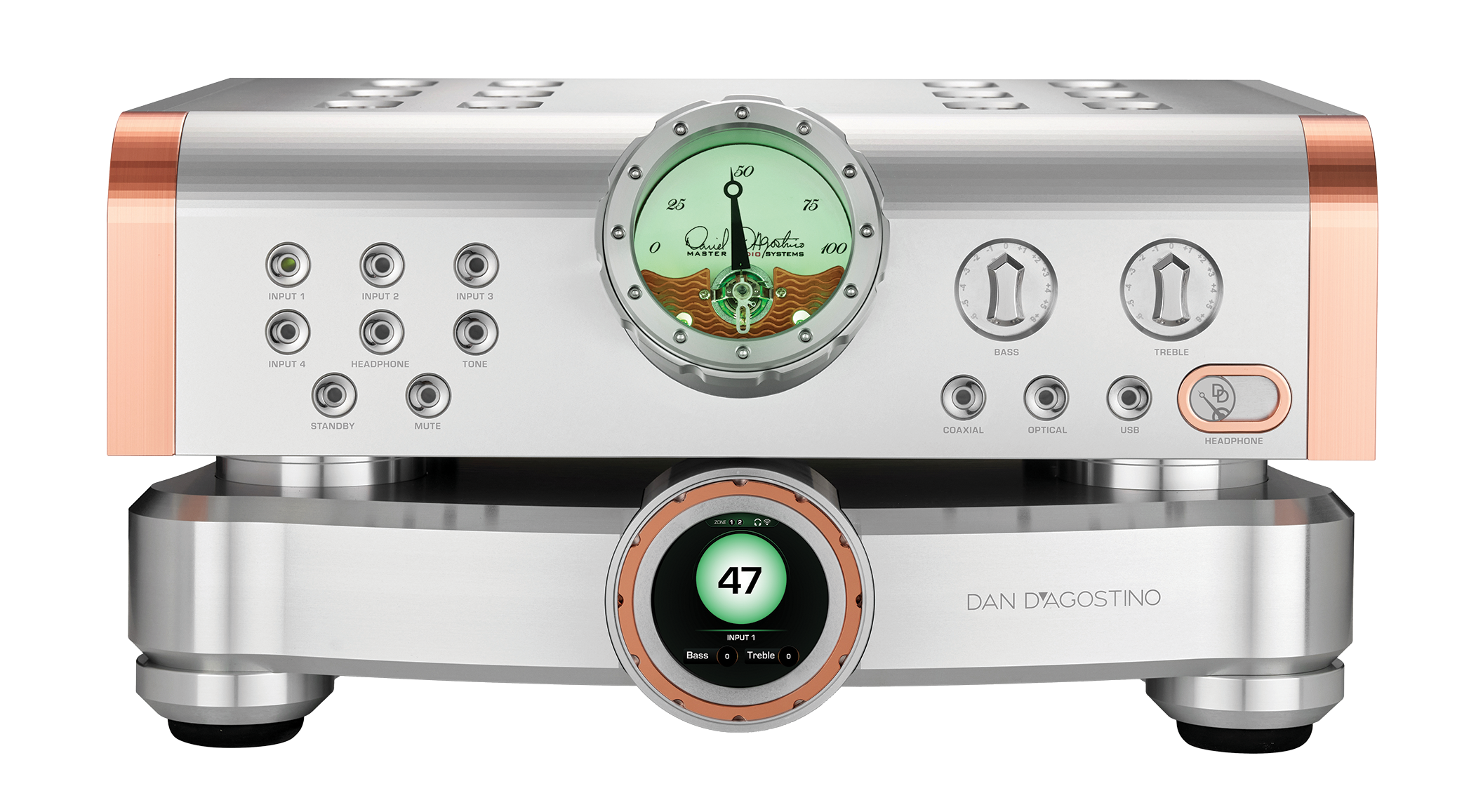

Front Panel
- 1- Balance XLR Analog Source Input 1-3 Selector Buttons
- 2- Single-ended RCA Analog Source Selector Button
- 3- Standby/Power On Button
- 4- Headphone Selector Button
- 5- Mute Button
- 6- Tone Control Selector Button
- 7- Multi-Purpose Display
- 8- Power Supply Chasis
- 9- Headphone Input Jack (Behind Sliding Logo Door)
- 10- Digital Source Selector Buttons
- 11- Tone Controls
- 12- Volume Control Knob

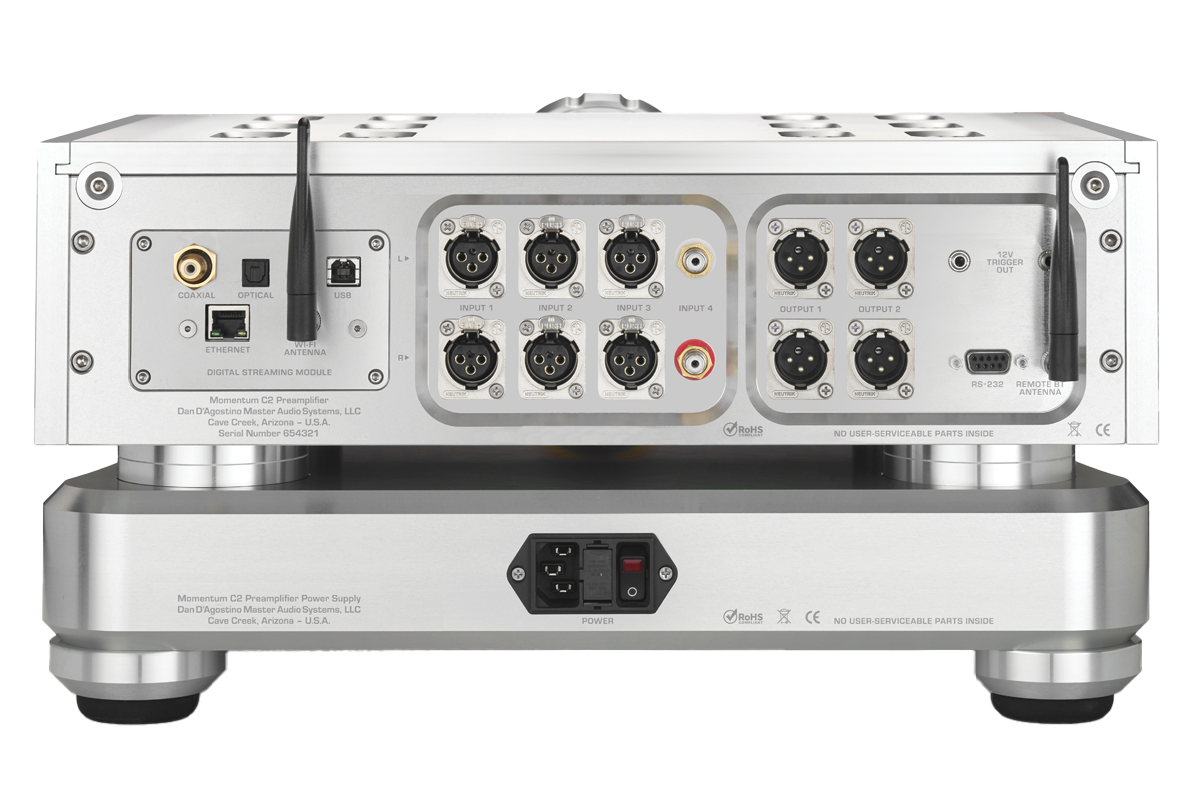

Rear Panel
- 1- Option Digital Streaming Module with SPDIF, Ethernet, Optical, USB, and Wi-Fi antenna connections
- 2- IEC AC Power Socket
- 3- AC Power Switch
- 4- Bluetooth Antenna
- 5- RS-232 Control Connector
- 6- 12-volt Trigger Output Jacks
- 7- Balanced XLR Output Jacks
- 8- Single-ended RCA Input Jacks
- 9- Balanced XLR Input Jacks
