An Amplifier Born to Conquer, a Velvet Hammer
The Relentless Mono Amplifier is a true balanced design but unlike conventional bridged amplifiers, the Relentless Mono Amplifier uses a single front end topology, based on current mirror circuitry to derive the symmetrical plus and minus rails. Typical bridged amplifier designs use two front end circuits making it virtually impossible to achieve perfect symmetry, and thus not balanced, between the plus and minus rail. In the Relentless Mono Amplifier, distortion artifacts that appear on one half of the signal will also appear on the other half and thus cancel each other. This unique single front end circuit configuration allows for the awesome power output of the Relentless Mono Amplifier with strikingly low distortion. The Relentless Mono Amplifier does not employ any global negative feedback which makes their distortion figures truly impressive. The amplifier’s open-loop linearity eliminates the need for this performance-robbing technique. Gain circuits operate in the current domain, assuring the Relentless Mono Amplifier performance does not fluctuate regardless of the demand.
With its 5.5-kilowatt power supply feeding nearly 100 output devices, the Relentless Mono Amplifier easily delivers 1,500 watts into 8 ohms—and when connected to a 220-volt or greater AC mains outlet, it doubles its output to 3,000 watts into 4 ohms and 6,000 watts into 2 ohms. This power output is maintained with the same musical composure at full power as it is at 1 watt.
Perfect Balance and Absolute Power
The core of the power supply is a 5.5 KVA linear transformer that uses multiple sections running in concert, potted and encased in a metal shield. This design reduces transformer noise to nearly zero and protects the audio circuitry from the transformer’s magnetic field. The transformer feeds a custom-designed rectifier circuit and a 600,000-microfarad/100-volt capacitor bank. A custom-made Delrin brace mechanically grounds each capacitor so they won’t vibrate. An additional electrostatic shield isolates the A slow-start circuit activates the power supply in stages, eliminating concerns about capacitive inrush tripping household circuit breakers.
Ultimate Control for Any Loudspeaker
Dan D’Agostino’s exclusive Super Rail concept makes maximum use of the incredible resources of this power supply. Super Rail employs higher voltage rails in the sections prior to the output stage, effectively “turbocharging” the amplifier.Every amplifier uses two voltage rails, a positive one and a negative one. Voltage rails support the delivery of power to the speaker. The music signal swings between these two rails but due to natural loss, the musical signal never reaches the output rails’ full capability. A Super Rail overcomes this limitation. The Super Rail employs higher voltage rails in the sections prior to the output stage. This voltage "boost" allows the musical signal to exploit the full capability of the output voltage rails. Extending the musical signal swing closer to the output rails maximizes the performance of the output circuitry design itself. This inspired technique improves dynamics, lowers distortion, and tightens the amplifier’s electrical grip on the speaker.

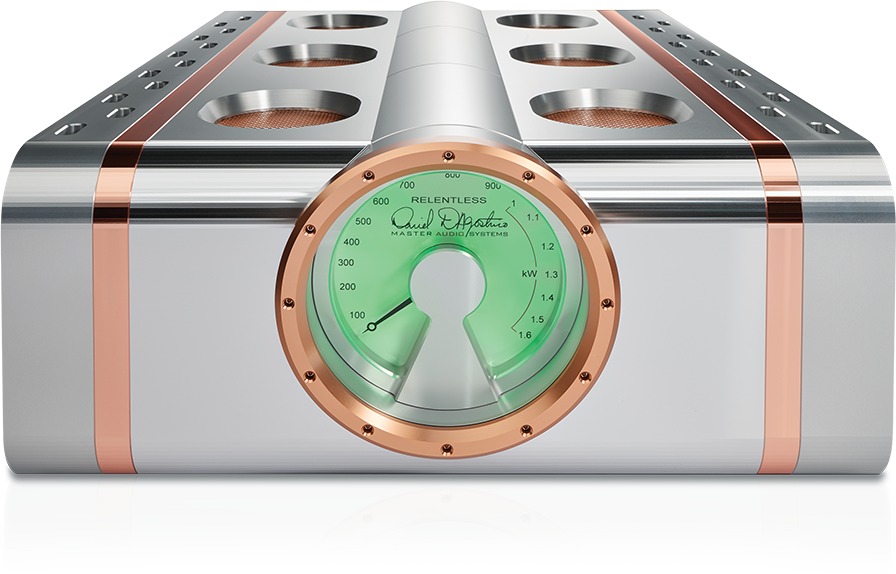

The Relentless Mono Amplifier's new power meter measures more than eight inches in diameter. The meter’s range and response automatically adjust to the level of the incoming signal, making it easy to read no matter how quiet or loud the musical passage.
The entire chassis of the Relentless Mono Amplifier is machined from solid aluminum, for superior shielding, thermal stability and vibration damping. High-precision milling allows the entire chassis to fit together solidly with no visible fasteners. A 1 µm-deep diamond cut finish with a synthetic enamel coating completes the aesthetic.
An Amplifier Like No Other
The Relentless Mono Amplifier's unique heat sink combines copper and aluminum in a thermal engine that wicks away heat from the connected devices. The elaborate elliptical design expands on the venturi heat sink first explored in the Momentum series, and assures that the Relentless Mono Amplifier runs safely and reliably even when delivering its full rated power. Thermal, short circuit, and DC protection are included in a non-invasive but comprehensive defense against any external system faults.
In keeping with the tradition begun with the Dan D’Agostino Audio Systems Momentum amplifiers, the Relentless Mono Amplifier offers a single XLR balanced input. Speaker connections are made using massive custom made binding posts made from gold-plated brass. A special tool is included for tightening speaker cable connections without damaging the terminals themselves.
Just as no audio designer has been more relentless than Dan D’Agostino in his pursuit of perfection, we think it safe to say that no power amplifier has been designed and built to a higher standard than the Relentless Mono Amplifier.
